Demolition Project

Step-Cutting Process for Heavily Reinforced Concrete Structures

• Equipment Utilized: Pentruder High Frequency Wall Saw System

• Blade Configuration: 800mm➔ 1200mm➔ 1600mm Three-Stage Diamond Wall Saw Blades

• Core Methodology: Full-depth, high-precision step-cutting driven by high-frequency high-power output

🛠️ 1. Site Challenges & Technical Pain Points

• Extreme Cutting Depth: The target walls and structures were exceptionally thick, requiring large-diameter blades for full-depth through-cutting. This demanded absolute spindle rigidity and precise perpendicularity control from the equipment.

• High-Density Reinforcement: The internal structure was heavily congested with high-tensile, large-diameter rebars. During continuous cutting, the blades frequently engaged in full-face cutting of heavy steel, which easily causes conventional machines to jam, overheat, or overload due to insufficient torque.

• Zero-Vibration Restriction: Due to the structural sensitivity of the surrounding retained areas, any impact-based demolition methods were strictly prohibited. The separation had to be achieved cleanly through physical cutting with "surgical" precision.

📐 2. Step-Cutting Process Full Analysis

To cut deep, heavily reinforced concrete, blindly mounting a massive blade from the start can cause blade whipping, deflection, or jamming. The project strictly executed a scientific Step-Cutting Process, fully leveraging the quick-change design of the Pentruder system:

 Phase 1: 800MM Blade —— Rapid Tracking & Guide Slot Setup

• Objective: Establish an absolutely straight tracking baseline to prevent larger blades from deflecting later.

• Site Performance: Utilizing the excellent bending stiffness of the $\Phi 800\text{mm}$ blade, driven at high RPM by the Pentruder HF motor, the team rapidly cut into the concrete. This initial step created a precise guide slot of approximately $300\text{mm}$ in depth, laying a stable track for subsequent deeper cuts.

Phase 2:1200MM Blade —— Core Penetration Through Rebar Grid

• Objective: Incrementally increase depth and cut through internal heavy-duty main rebars.

• Site Performance: Following the pre-cut guide slot, the $\Phi 1200\text{mm}$ blade was mounted. As the depth increased significantly, the blade engaged directly with the core heavy steel reinforcement network. Thanks to Pentruder’s signature high-frequency, high-torque output, the system maintained a stable spindle speed even when cutting dense steel, showing remarkable heavy-load handling.

Phase 3: 1600MM Blade —— Ultimate Deep Cut & Flush Finishing

• Objective: Achieve a complete, clean through-cut and ensure optimal surface finish.

• Site Performance: Finally, the ultra-large $\Phi 1600\text{mm}$ diamond blade was mounted. Constrained and protected by the existing deep slot, the large blade cut smoothly to the full design depth. Pentruder’s rugged track and carriage system effectively locked out any machine oscillation, resulting in a cut surface as smooth as a finished wall—free of offsets or steps—completing the breakthrough successfully in one pass.

🚀 3. Pentruder HF Wall Saw Core Advantages

Throughout the high-intensity operation cycle, the Pentruder system delivered performance that far exceeded conventional cutting equipment:

• Intelligent Power Matching: The high-frequency electronic control system automatically optimized torque output and peripheral blade speed based on real-time load feedback across the 800→1200→1600MM blade transitions. This ensured no jamming during deep cuts with large blades and no segment glazing during fast cuts with smaller blades.

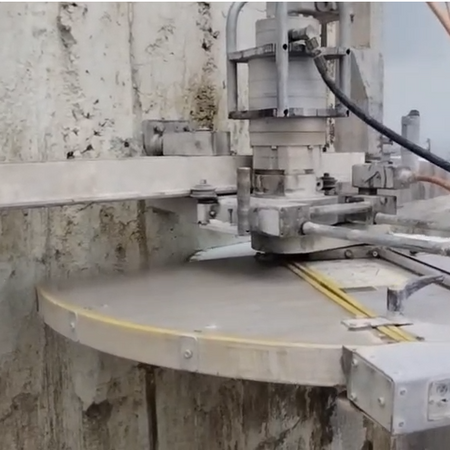

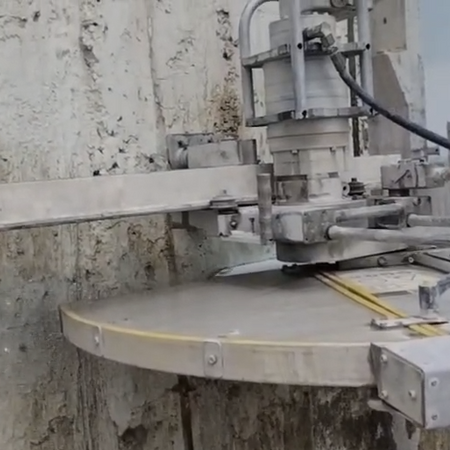

• Unrivaled Rigid Construction: As shown in the on-site operation photos, even when carrying the heavy 1600MM blade and enduring massive reactive forces, the connection between the saw head and the track remained perfectly tight with zero flex or high-frequency chattering, guaranteeing absolute linear precision.

• Superior Duty-Cycle Reliability: Facing prolonged continuous cutting in thick concrete, the cooling efficiency of the HF motor and the stability of the microprocessor controller performed flawlessly. There were no instances of thermal shutdowns or protective lockouts, minimizing non-productive downtime.

💬 4. Technical Summary

The successful execution of this project highlights the critical importance of a systematic Step-Cutting Process when dealing with heavily reinforced, thick concrete structures. By transitioning precisely from 800MM to 1200MM, and finally 1600MM blades, the cutting operation achieved optimal mechanical leverage and cutting efficiency at every depth increment.

Backed by the Pentruder HF system's high torque stability and rigid track tracking, this methodology effectively eliminated the risks of blade deflection, premature segment wear, and structural micro-cracking. Ultimately, the project demonstrated that combining intelligent high-frequency power with a structured, multi-stage blade progression represents the gold standard for achieving surgical precision, structural integrity, and rapid cycle times in modern heavy-duty concrete demolition.
