Milling Project-Concrete Cutting Work

Milling Project-Concrete Cutting Work

The project involved cutting reinforced concrete slabs for installation works. The main application focused on preparing surface openings and expansion joints. The requirement was to achieve clean, straight line cutting with controlled depth, ensuring precision and stability for subsequent construction activities.

Machine Used

• Model: TC-3 Diesel Cutter

• Power Source: Diesel Engine (Air-Cooled, Max. 16HP)

• Blade Installed: 14” (350mm) Diamond Blade

• Cutting Depth: Approx. 120–125mm

• Weight: 165kg (approx.)

• Key Features:

  • Compact diesel-powered cutter, suitable for outdoor works without electricity

  • Heavy-duty steel frame for stability during long cuts

  • Adjustable depth control for precise cutting

  • Built-in water tank for continuous cooling & dust suppression

  • Ergonomic design for better handling and guiding accuracy

Work Process

1. Preparation & Setup

   • Delivered TC-3 Diesel Cutter to site

   • Installed 14” diamond blade and inspected alignment

   • Filled water tank to ensure continuous cooling

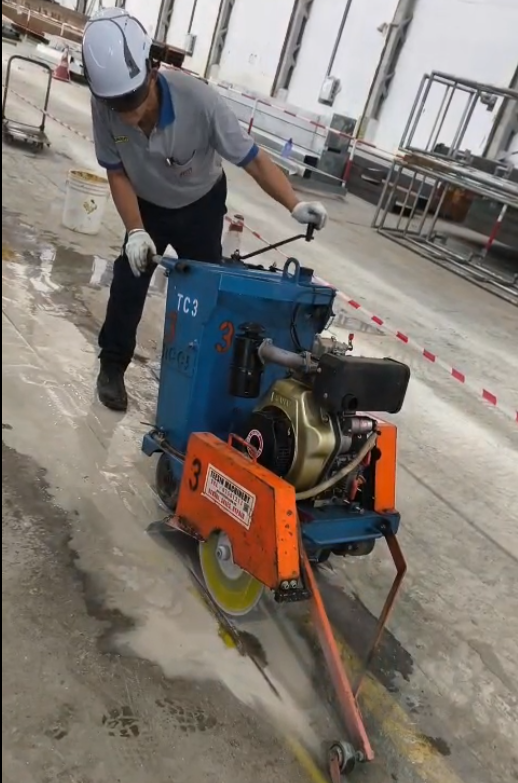

2. Execution of Cutting

   • Marked cutting lines on concrete slab

   • Adjusted cutting depth to ~120–125mm

   • Performed straight cutting along pre-marked lines

   • Maintained steady speed for clean and smooth results

3. Safety & Dust Control

   • Continuous water spray applied to suppress dust and extend blade life

   • Operators equipped with PPE (helmet, ear protection, goggles, gloves)

   • Cutting area cordoned off with proper safety signage

Project Outcome

• Achieved precise and uniform cutting results

• Cutting completed on time with no delays

• No overheating or blade damage during operation

• Client highlighted machine stability, efficiency, and cutting accuracy

Remarks

The TC-3 Diesel Cutter with 14” blade is a reliable solution for medium-depth slab cutting projects, especially in outdoor environments where diesel-powered equipment is preferred. The machine provided stable performance, durability, and accurate cutting quality, making it highly recommended for reinforced concrete works.
