Industrial Concrete Floor Refurbishment

This project involved large-scale concrete floor grinding and surface preparation. The primary goal was to achieve a smooth, level finish while maintaining a dust-free environment using professional-grade industrial equipment.

Equipment Configuration (The "Power Couple")

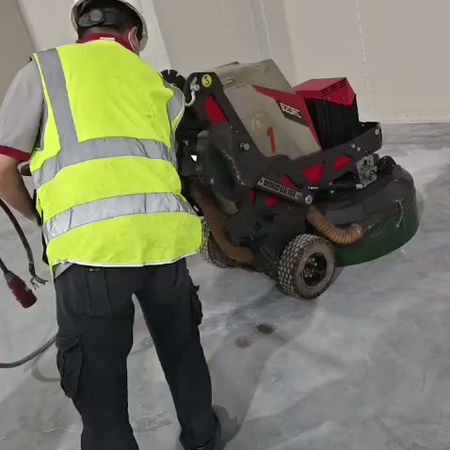

1. CIMAR CMG-1350 Multi-Grinder (The Heavy Lifter)

For this project, the CMG-1350 was selected for its superior material removal rate.

• High Torque Performance: Equipped with a 7.5HP (5.5KW) motor, it handled the hard-cured concrete with ease, far outperforming smaller single-phase units.

• Precision Engineering: With a 330MM disc diameter and 1000RPM rotation speed, it provided an optimal balance between aggressive grinding and smooth finishing.

• Industrial Power: Designed for 415V 3-Phase power, ensuring stable performance during continuous, long-hour operations.


2. IVC-F65L Industrial Vacuum (The Dust Guard)

To achieve a "Clean-Room" standard during construction, the grinder was directly coupled with the IVC-F65L.

• High Suction Volume: With an airflow of 350M^3/H, it effectively captured 99% of airborne silica dust at the point of origin.

• Large Capacity: The 65L tank allowed for longer intervals between disposal, significantly increasing onsite productivity.

• Flexible Integration: Despite being a 240V unit, its suction power is perfectly matched for the output volume of the CMG-1350.

On-Site Execution & Performance

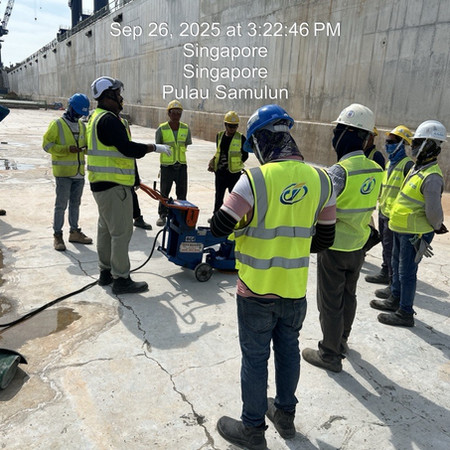

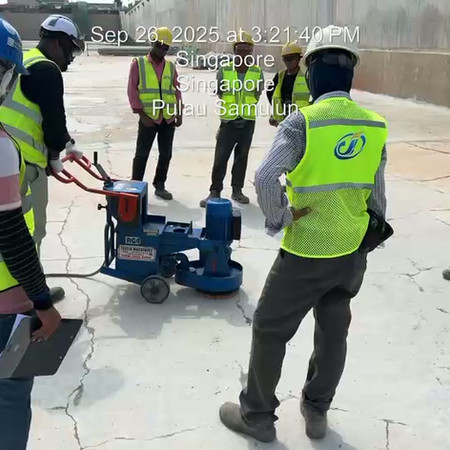

Phase 1: Heavy Grinding & Leveling

Using the CMG-1350, our operators focused on removing the "laitance" and high spots of the concrete. The machine's weight and balanced chassis allowed it to stay stable even on uneven surfaces, preventing "chatter marks."

Phase 2: Integrated Dust Extraction

The IVC-F65L was connected via a heavy-duty hose to the grinder's shroud.

• Visibility: Clear visibility for the operator, as no dust clouds were formed.

• Safety: Workers were able to operate in a safer environment with minimal respiratory risk.


Phase 3: Edge and Corner Management

The compact design of the CMG-1350 allowed it to grind remarkably close to structural columns and wall edges, reducing the amount of manual hand-grinding required.
