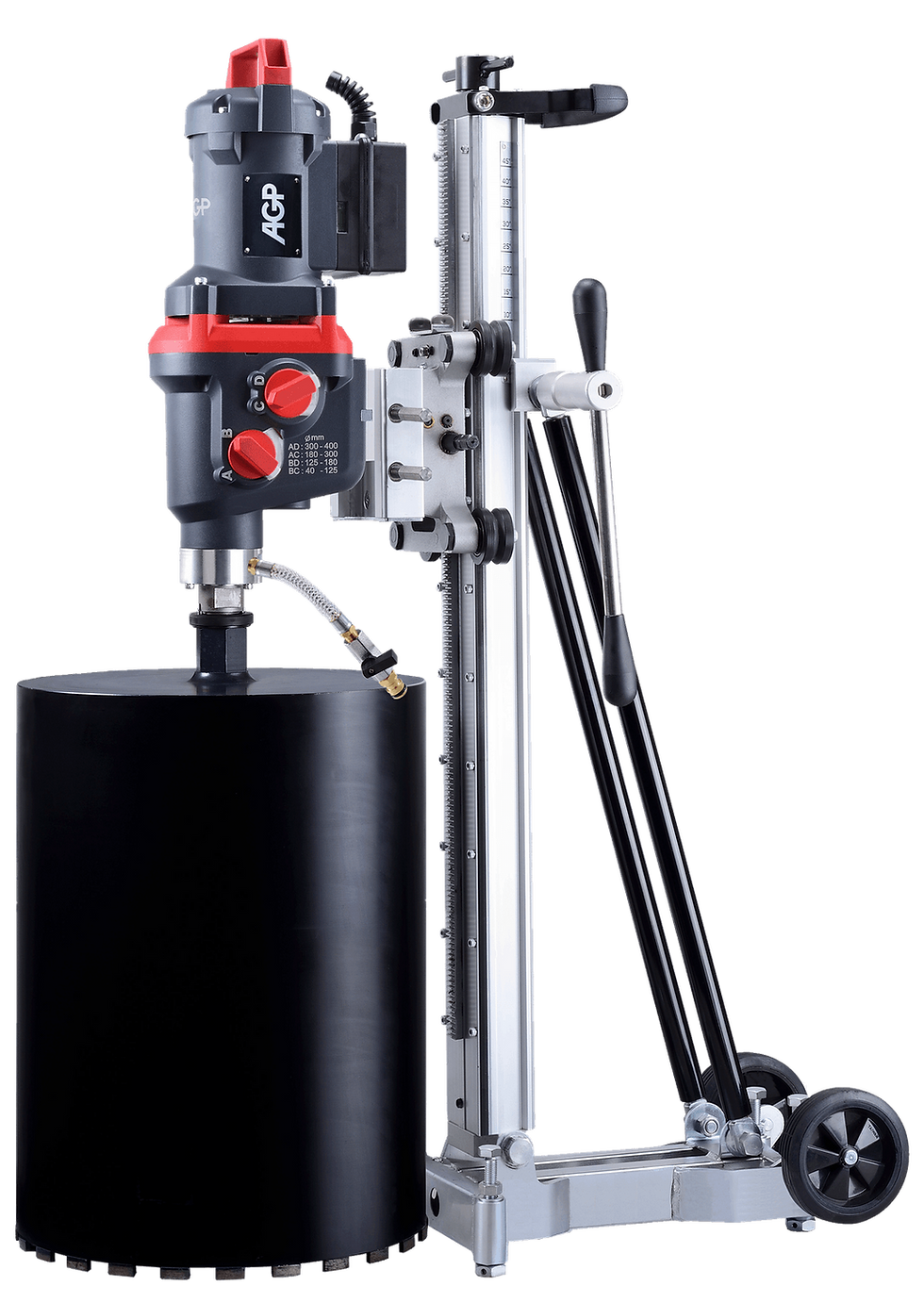

The AGP S500 drill stand paired with the DM14 high-power core drill motor delivers exceptional performance for medium to large-diameter coring in concrete and masonry. Built for durability and precision, this combination is ideal for demanding construction and installation projects.

S500 Drill Stand
Capacity:
With spacers: up to 500 mm (20") core diameter
Without spacers: up to 350 mm (14") core diameter
Effective Stroke: 690 mm (27") for deep drilling
Dimensions: 480 × 240 × 1025 mm
Weight: 19.1 kg
Provides stable support for vertical or angled drilling.
DM14 Core Drill Motor
Motor Power: 3500W / 16A for high-performance coring
Voltage & Frequency: 220–240V, 50–60 Hz
No-load Speeds: 385 / 530 / 975 / 1340 RPM
Rated Load Speeds: 225 / 300 / 565 / 780 RPM
Drilling Capacity: up to 400 mm (16") core diameter
Gear Oil Type: 80W–90, capacity 625 ml
Spindle Thread: 1-1/4" UNC male & 1/2" BSP female
Safety: Class 1 with PRCD / GFCI (110–120V version without PRCD/GFCI)

Applications:
Wet drilling in reinforced concrete, asphalt, brick, and stone
Plumbing, electrical conduit installation, HVAC duct openings
Structural anchoring and precision core drilling
