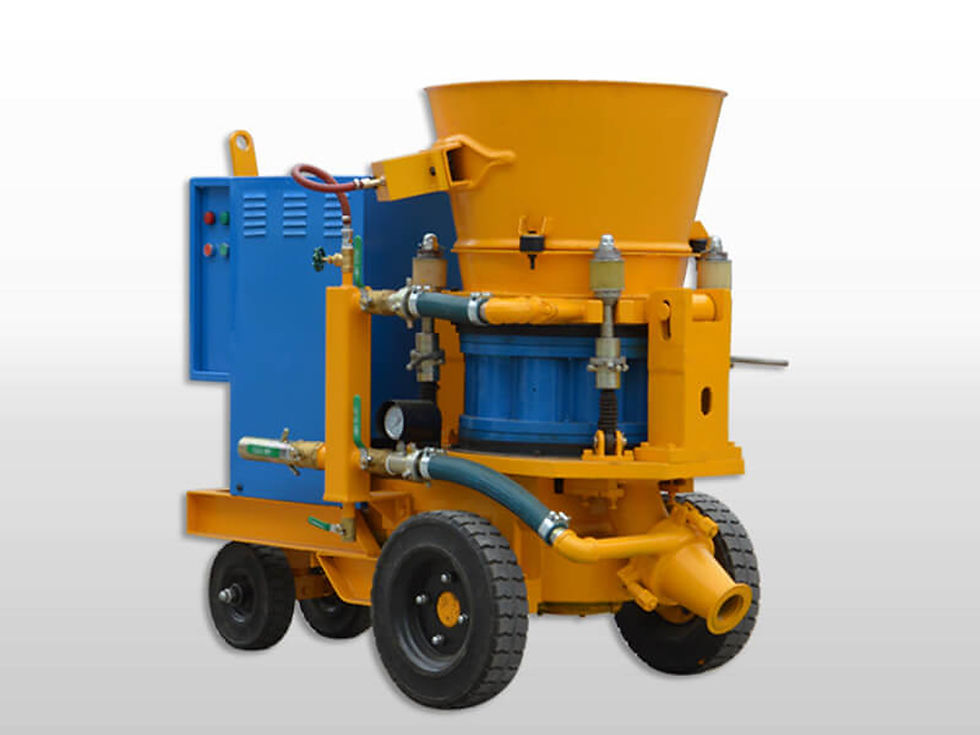

CIMAR SHOTCRETE CSM-5E (Made in China) – High-Performance Dry-Mix Shotcrete Machine for Demanding Construction Applications

The SHOTCRETE CSM-5E is a professional-grade dry-mix shotcrete machine designed to meet the rigorous demands of modern construction environments. Built for durability, efficiency, and performance, the CSM-5E is ideal for a wide range of applications including tunneling, mining, slope stabilization, swimming pool construction, and concrete repair projects.

With its compact footprint, high output capacity, and flexible power options, the CSM-5E offers contractors and construction professionals a reliable shotcrete solution that delivers consistent spraying results while reducing labor and time on-site.

🔧 Key Features of the Gaode SHOTCRETE CSM-5E

1. High Efficiency with 5 m³/h Output
The CSM-5E boasts a rated output of 5 cubic meters per hour, enabling fast and continuous application of dry-mix shotcrete. This ensures high productivity in both confined spaces and open job sites, helping contractors meet tight project deadlines.

2. Adaptable Power Options
To accommodate different site requirements, the CSM-5E is available in various drive modes, including:
Electric motor (5.5 kW) – Ideal for urban and indoor projects with stable power supply.
Diesel engine or air motor options – Perfect for remote or power-limited environments.
This adaptability makes the machine extremely versatile across multiple industries and locations.

3. Durable, Heavy-Duty Design
Manufactured using high-quality materials and engineered for rugged use, the CSM-5E is built to withstand harsh construction conditions. Its rotor, stator, and internal components are optimized for long service life and reduced maintenance downtime.

4. Wide Conveying Range
The Gaode CSM-5E is capable of pumping shotcrete over long distances—up to 200 meters horizontally—making it suitable for tunnel lining, mine shaft stabilization, and large-area concrete spraying.

5. Precise Mixing and Spraying
This dry-mix shotcrete machine provides excellent control over material mix ratios (cement/sand ≤ 1:3–5) and water content (water-cement ratio < 0.4). This ensures even material distribution, minimal rebound, and a smooth, strong finish on application surfaces.

6. Compact and Easy to Transport
Measuring only 1350×750×1200 mm and weighing just 720 kg, the CSM-5E can be easily maneuvered around job sites, transported between locations, or operated in confined construction areas.

📊 Technical Specifications
Feature
Specification
Output Capacity
5 m³/h
Max Conveying Distance
Up to 200 m (horizontal)
Cement/Sand Ratio
≤ 1:3~5
Water-Cement Ratio
< 0.4
Max Aggregate Size
Ø15 mm
Air Pressure Requirement
0.2–0.4 MPa
Air Consumption
8–9 m³/min
Motor Power
5.5 kW (Electric)
Voltage
400V / 50Hz
Rotor Speed
11 rpm
Hose Inner Diameter
Ø51 mm
Machine Dimensions (L×W×H)
1350×750×1200 mm
Net Weight
720 kg

🏗️ Applications
The SHOTCRETE CSM-5E is engineered for high-precision dry-mix shotcreting across a wide range of construction sectors, including:
Tunneling and Mining – Ideal for rock stabilization and tunnel lining.
Slope Stabilization – Effective for preventing erosion and landslides on embankments and hillsides.
Swimming Pool Construction – Ensures consistent concrete shell spraying for pools of all sizes.
Retaining Walls and Foundations – Delivers a smooth, structural finish for base applications.
Structural Repair and Maintenance – Used for restoring old concrete surfaces with minimal demolition.

✅ Why Choose the Gaode CSM-5E Shotcrete Machine?
When it comes to choosing a reliable, high-performance dry-mix shotcrete machine, the CSM-5E stands out for its exceptional value, superior build quality, and versatile use in various concrete spraying environments. It offers a perfect combination of speed, control, and cost-efficiency, making it a favorite among contractors in civil engineering, mining, and repair sectors.
Whether you are building a tunnel, reinforcing a slope, or applying concrete lining, the CSM-5E delivers clean, professional results that meet the highest construction standards.

Enhance your construction capabilities with the Gaode SHOTCRETE CSM-5E – built in China, trusted worldwide.

What is shotcrete?

Shotcrete or sprayed concrete is concrete or mortar conveyed through a hose and pneumatically projected at high velocity onto a surface, as a construction technique. It is typically reinforced by conventional steel rods, steel mesh, or fibers.

A shotcrete machine is a piece of machinery for spraying substances like mortar or concrete, and it comprises a concrete pump, compressor, remote control, arm or hose, and nozzle.

Shotcreting allows for more concrete adhesion and bond strength than traditional methods, reducing the number of admixtures required.

Unlike concrete pouring, which uses formwork and scaffolds to maintain the weight or the water-cement proportion, sagging is not an issue with shotcrete application. Teesin offers all well-known brands of shotcreting for sales, rental, and repair services. We also provide products from international brands from China, Europe, the United States, and Japan.
